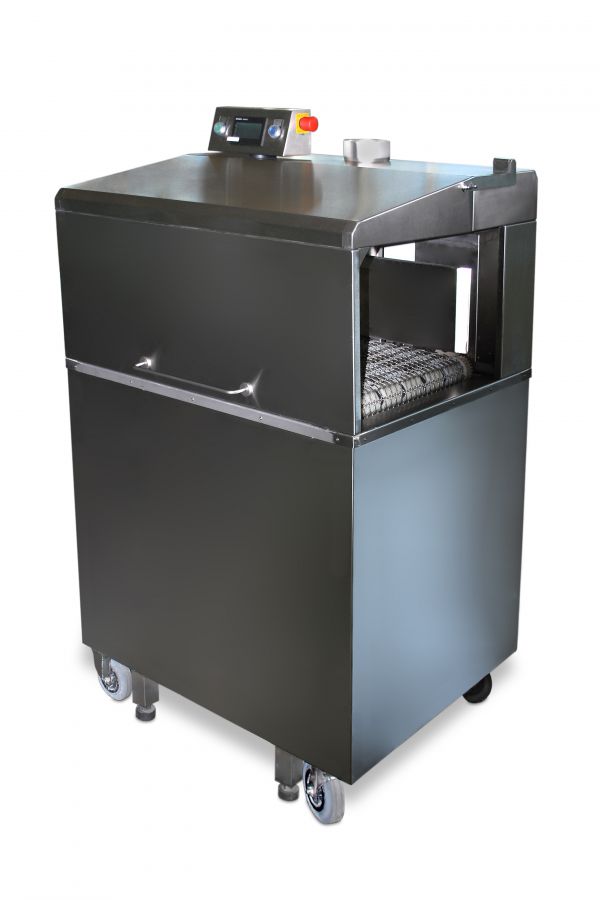

Large W8F shrink tank compatible with automated packaging line

Application:
Automatic shrink tank is designed to work with either automatic or twin-chamber packaging machines set in packaging line systems or individually. The product is shrink wrapped after previous vacuum packing

Result:
•    Quick packing thanks to 6 t/h efficiency
•    Increased capacity of the packaging line by means of fully automated shrinking process
•    Prolonged product's life
•    Aesthetic, neat package without unnecessary irregularities and wrinkles
•    Product is ready for effective labelling after previous drying (Dryer W10B recommended)

Technical description

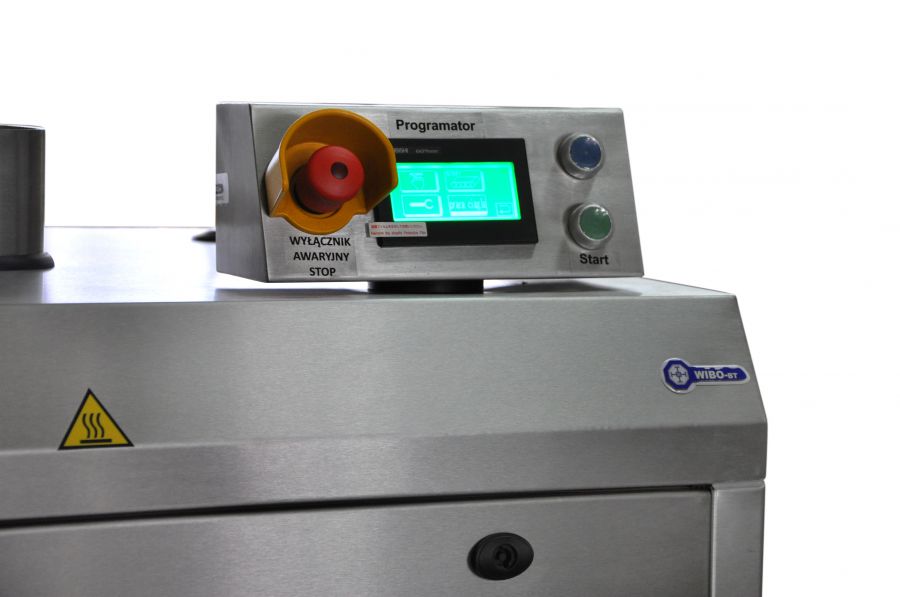

Fully automated shrink tank is made of stainless steel. Moving table is also made of stainless steel and plastic. The machine is equipped with a modern microprocessor controller that controls the correctness of operation and allows you to set the operating parameters of the shrink tank depending on individual needs, touch screen, automatic adjustment of the water level and temperature, stepless adjustment of immersion time, operation cycles controlled by an optical sensor and automatic shut-off after finishing work.
A product ready to be shrink wrapped coming to the shrink tank is recognized by an optical sensor, which measures certain amount of the product placed on the moving table, which in turn immerses and emerges it from the bath at the appropriate temperature and leads it outside.

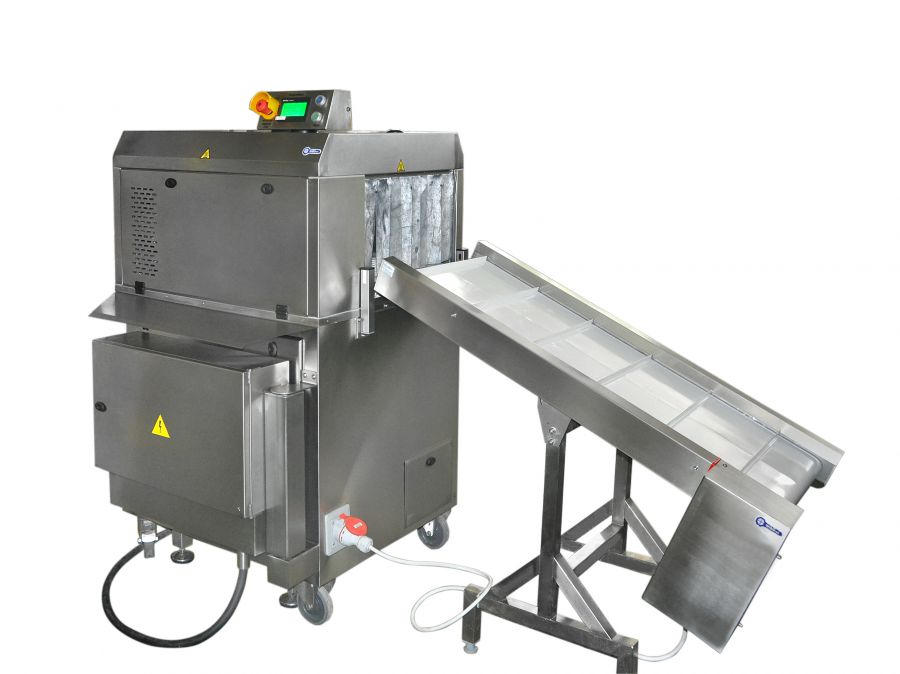

In order to increase the capacity of the packaging line it is recommended to use automatic feeders on both sides of the device, tailored individually to the needs of the user.’

Model

Large W8F shrink automatic tank

Voltage 3x400V
powered 63 A
Frequency 50 Hz
Power of heater 16 kW/34kW
Level of protection IP54
Capacity ~ 230 dm³
Dimensions 1510x890x1000(mm)
weight 220 kg
