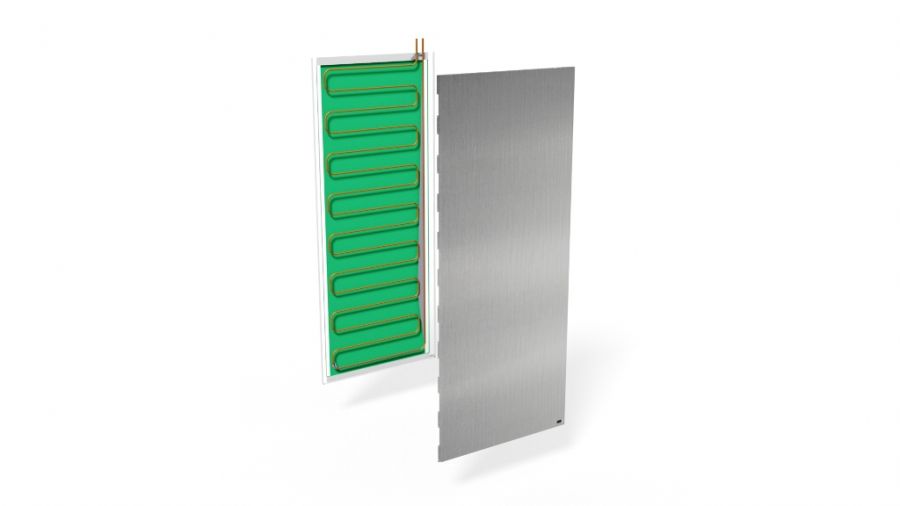

Heating panels produced by our company are made of stainless steel with aluminium heating framework, containing polybutene tube in cross-section of 12x1.3 mm mounted behind the wall panel, with the heating power of about 90W / m2. Connection between heating panels and the central heating is achieved through distribution box with thermostat and distributor.

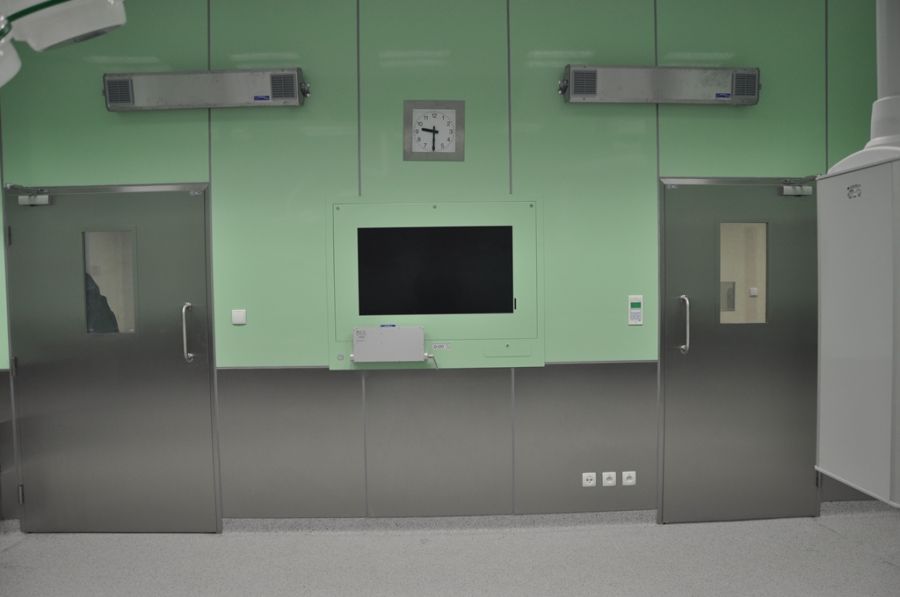

The system is integrated with the air conditioning system in operating theatres.

Specifications:

•    The panels are constructed using galvanized steel gr. 1.5 mm consisting of bonds connected by staples, made of vertical and transverse profiles, which form a     stable scaffolding
•    Heating construction made of aluminium
•    Mounting points of the coffers (wall panels) on the construction are inapparent
•    20 mm thick wall panels made of 1 mm thick stainless steel are constructed in     multi-layer technology and finished with stainless steel 1.4301
•    The wall structure enables easy removal of a single panel to carry out additional changes in the installation and construction
•    The antibacterial hermetic silicone silver pressure gasket is applied
•  The system for construction of ceilings guarantees an equal level of planes, effortless assembly and disassembly

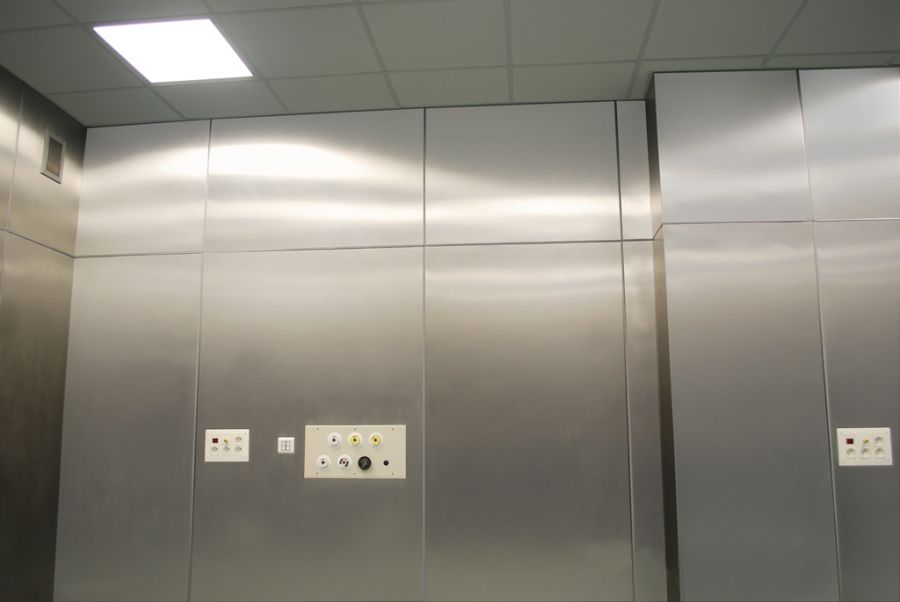

•   The ceiling panels system for operating theatres is a coherent and consistent     complement to modular wall system. Wall panels can be adjusted to the distance     between the axes of the grid ceiling system and removed one by one
•   The elimination of the risk of contamination in the corners through application of bent panels without contacts and joints in the corners
•    Installation creates a sealed surface adapted to gas decontamination




  • panel surface finish: natural stainless steel with a polished structure, glass  surface, surface painted in RAL colours, with silver ions
  • anti-X-rays shield in the form of lead input of thickness from #0.5 to #3.
