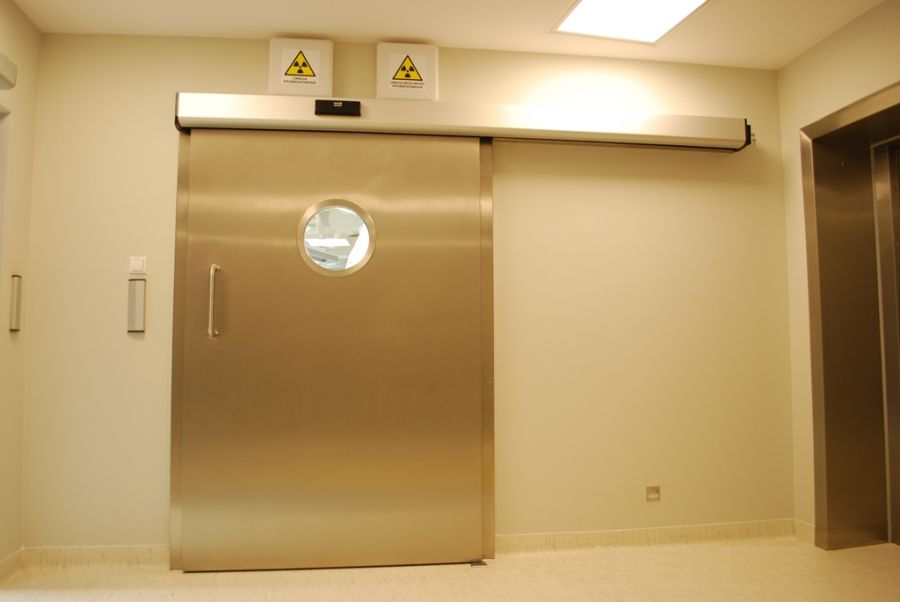

X-ray protective sliding doors

Product description
Additional options
Ask a question
Depending on demand, X-ray Protective Doors are especially recommended for X-ray rooms and laboratories and ultra-modern operating theatres.
The construction of the door is designed to reduce the intensity of radiation reaching the site to a value lower than the permissible maximum. Radiological protection inside our door consists of lead input of equivalent in the range of PB # 0.5 mm to # 3 mm.

X-ray protective doors are available in either hinged and sliding option.

The specification of automatic sliding and hinged X-ray protective doors :

•    The door and casing are made entirely of stainless steel with polished texture
•    Stainless steel 1.4301 hardware
•    Optimized thickness of panel 40 mm
•    Panel constructed using highly-compressed polyurethane foam, constituting thermal and acoustic insulation at the same time, providing lightness and rigidity of the leaf
•    Lead input used in the door frame and the panel blocks X-rays
•    Hygienic silicone gasket
•    single or double-leaf doors
•    stainless steel hinges or wheelset
•    stainless steel door pull in two options - short and long or a door handle

Model

PM-1 - Single-sliding medical door

PM-2 - double -sliding medical door

•    Door available in hermetic option to ensure controlled air exchange and prevent the ingress of foreign bodies.
•    Stainless steel treatment of the door opening
•    Glazing in various configurations
•    Coating with paint from RAL colours
•    Coating with silver ions
•    The panel is created using layer technology additionally filled with either a board resistant to shock or mineral wool.
